Fial Incorporated
2701/2705 MCS-11/IP Tunnel

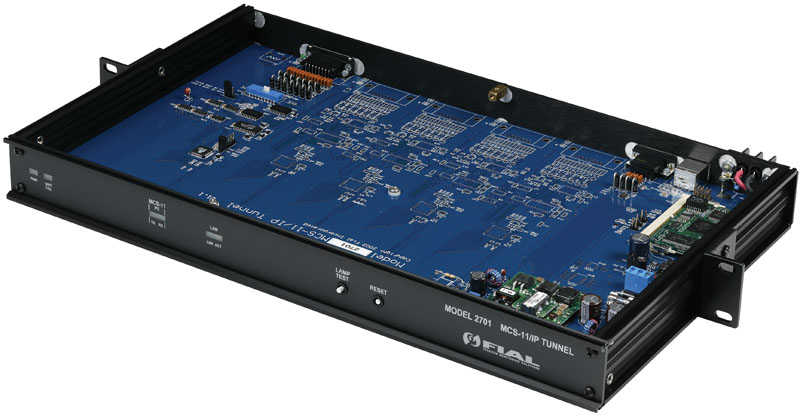

View larger photos of the 2701 MCS-11/IP Tunnel
View larger photos of the 2701 MCS-11/IP Tunnel

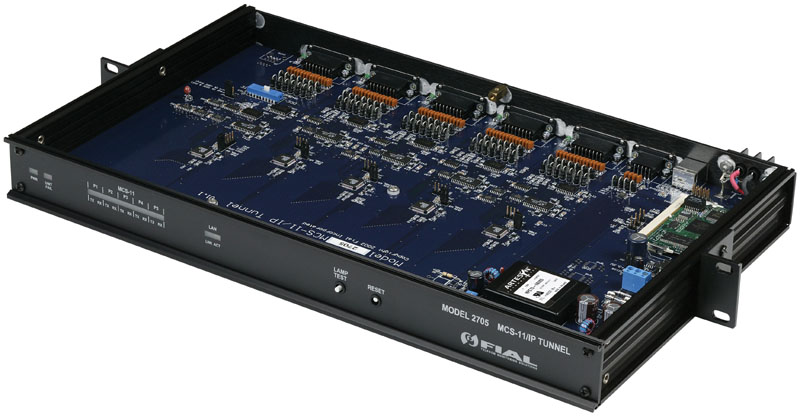

View larger photos of the 2705 MCS-11/IP Tunnel
View larger photos of the 2705 MCS-11/IP Tunnel

Key Features:

Connects MCS-11 Islands over IP
    Network
One Ethernet 10/100baseT Port
One (2701) or Five (2705) MCS-11
    Ports
5 Port MCS-11 Bridging (2705)
MCS-11 Tunneling to Multiple
    Remote IP Addresses
Distribute MCS-11 addresses across
    any number of remotes
Telemetry Performance Data
Wide Range DC Power Input


Bridges one (2701) or up to five (2705) MCS-11 network connections over an IP connectionless (Internet or internet) network; used at MCS-11 islands or MCS-11 polling engines (computer masters); allows MCS-11 polling over a LAN or the Internet; WEB or Telnet configuration; 1 RU high; multiple rack mounting positions; 18 to 56 VDC floating power supply


Model 2701/2705 Characteristics

Telemetry Channel Interface
     2701: one MCS-11 Port, DB15F

     2705: five bridged MCS-11 Ports, DB15F



     LAN Port, RJ-45








     Performance Data
RS-422 or RS-232 synchronous, DTE or DCE

Ports 1 through 4 DTE, port 5 DTE/DCE
RS-422 or RS-232 synchronous
(DTE accepts clock, DCE provides 64 kb/s clock)

10/100baseT operation, link & activity indicators
A Master connects to multiple remote units over IP
Each IP connection bridged to single MCS-11 port (2701)
     or to internal MCS-11 bridge (2705)
Remote IP ports not bridged together
     (direct connections between remote IP addresses
     are blocked)
MCS-11 to IP address routing

Statistics via web browser interface (MIBII)

     This product can not comprise the MCS-11 path between poll-synchronized polling engines.
     It may be used to tunnel to an MCS-11 spur from a poll synchronized system.

Configuration
     Craft Port
          9 pin female D-Sub (DB9F) shielded



     LAN Port (same port as above)
          RJ45
PC COM port connection
RS-232, 9,600 baud
8/N/1, no parity, no flow control
Embedded configuration program

Provides remote configuration via web
browser or telnet session

LED Indicators
      Unit power and unit fail
MCS-11 TX & RX activity
Lamp test pushbutton with clock-detect function

Power
     Input Power Range
     Power Consumption
     Power Connection
18 to 56 VDC, floating
4 Watts
Barrier Strip, two #6 screws
(separate chassis ground strap)

Environmental
     Operating Temperature
     Humidity Range
     Storage Temperature
0 to +50° C
5% to 95%, Non-condensing
-40 to +70° C

Physical Characteristics
     Shelf Size
     Rack Mounting
     Shelf Weight
1.75” (1 RU) H, 19” W, 11” D
Flush, 2” or 5 1/8” projection
6 pounds
