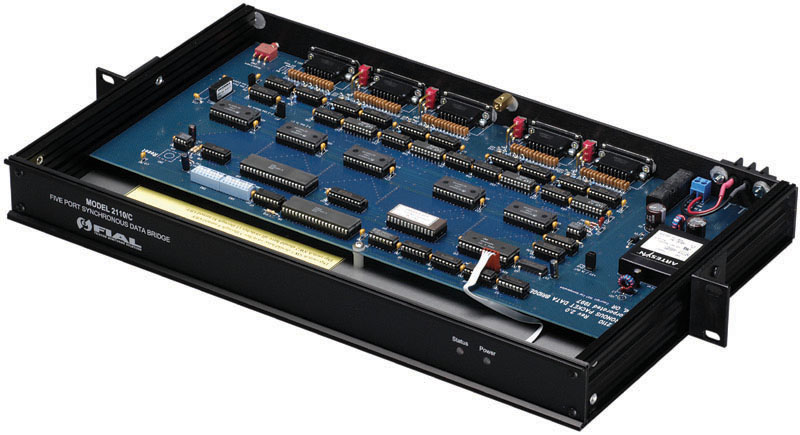

2110C Five Port Data Bridge, MCS-11
5 Port Telemetry Bridging
Up to five way bridging of MCS-11 protocol packets; bridging bi-directional with buffering and data rate conversion; electrical format conversion between RS-422 and RS-232 (slide switch configuration); One DCE port, five DTE ports; 1 RU high; multiple rack mounting positions; 18 to 56 VDC floating power supply
| Model 2110C Characteristics | |
| Telemetry Channel Interface | |
| Five Communication Ports Ports 1, 2, 3 & 4 Port 5 |
15 pin female D-Sub (DB15F) shielded 1,200 to 64,000 bps Synchronous MCS-11 DTE (RS-422 or RS-232, switch selectable) RS-232 supports dial-up or leased line modem Port data rate sensed at startup DCE (RS-422 only, clock from Port 1 or 2) DTE accepts clock, DCE supplies clock |
| LED Indicators | |
| Unit power Port status |
|
| Power | |
| Input Power Range Power Consumption Power Connection |
18 to 56 VDC, floating 6 Watts Barrier Strip, two #6 screws (separate chassis ground strap) |
| Environmental | |
| Operating Temperature Humidity Range Storage Temperature |
0 to +50° C 5% to 95%, Non-condensing -40 to +70° C |
| Physical Characteristics | |
| Shelf Size Rack Mounting Shelf Weight |
1.75" H (1 RU), 19" W, 11" D Flush, 2" or 5 1/8" projection 6 pounds |
| Documentation | |
 2110C Tech Data Sheet (PDF file size 1.84 MBs)2110C Tech Data Sheet (View as Webpage) |
|
