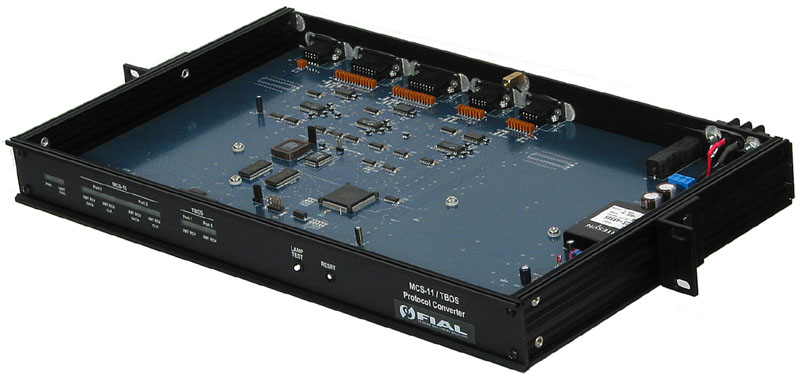

2070 MCS-11 / TBOS Protocol Converter
2 TBOS Ports
Bi-directional conversion (both alarms and controls) of Telemetry Byte Oriented Serial (TBOS) protocol (one or two TBOS ports) to MCS-11 Protocol (one or two connections); embedded or Windows configuration program; 1 RU high; multiple rack mounting positions; 18 to 56 VDC floating power supply
| Model 2070 Characteristics | |
| MCS-11 Channel Interfaces | |
| Two bridged communication ports 15 pin female D-Sub (DB15F) shielded |
300 to 64,000 bps Synchronous RS-422 |
| TBOS Channel Interfaces | |
| Two independent communication ports 9 pin female D-Sub (DB9F) shielded |
300 to 19,200 bps (user selectable) Asynchronous RS-422 |
| Craft Configuration Port | |
| 9 pin female D-Sub (DB9F) shielded | RS-232, ASCII, 4800 baud 8/N/1, no parity, no flow control Embedded text configuration program Windows configuration program |
| LED Indicators | |
| Unit power and unit fail status | Port TX & RX activity |
| Power | |
| Input Power Range Power Consumption Power Connection |
18 to 56 VDC, floating 3 Watts Barrier Strip, two #6 screws (separate chassis ground strap) |
| Environmental | |
| Operating Temperature Humidity Range Storage Temperature |
0 to +50° C 5% to 95%, Non-condensing -40 to +70° C |
| Physical Characteristics | |
| Shelf Size Rack Mounting Shelf Weight |
1.75" H (1 RU), 19" W, 11" D Flush, 2" or 5 1/8" projection 5 pounds |
| Alarm Point Mapping | |
| TBOS into MCS-11 | Alarm or Status Arbitrary (user defined) mapping |
| Control Outputs | |
| MCS-11 into TBOS | Momentary or Latching Arbitrary (user defined) mapping |
